Welcome to The Rockin'-B's Saturn Game Tutorial.
This tutorial will show you all basic techniques used to create a game for the SEGA Saturn video game system.
With this tutorial comes a complete Saturn demo that - hopefully - is easy to comprehend, well structured, reusable and which employs all basic stuff a game would need. It can be build and used with SaturnOrbit, the Saturn dev environment for Windows.
Also included is a script for The GIMP (free image manipulation program) which is very usefull for sprite and animation preprocessing.

Topics covered are:
sprites, 2 ways for animated sprites, bitmapped backgrounds, PCM soundeffects, CD audio background music, textured polygons, realtime gouraud shading, controller input handling, drawing text, CD file access as well as convertion of data types used and usage of compressed image files.

Out of the mass of possibilities, the stuff that's shown here is very well chosen.
Common pitfalls are clearely marked out as well as advanced and expert techniques which you can skip when reading the first time.
You will find some stuff in the tutorial and it's Saturn demo code which are new in Saturn homebrew and can't be found elsewhere.
The tutorial is presented like a FAQ. Though the order of topics is the order to read for newcomers, you don't have to read all, but only the stuff which is important for you.
Except this introduction, the author is trying to be short on words ;-). Well, I tried at least....

Feedback, additions, requests, bugs & corrections:
please e-mail

Introduction to the SEGA Saturn video game system

First off, programming SEGA Saturn is not difficult.
The hardware definitely is complex (and also very unique and interesting), but if you don't want to go deep inside, everything is just simple and easy.

The SEGA Saturn hardware consists of two main CPUs, the master and slave SuperH 2 (SH2) RISC processor from Hitachi with each running at 28 MHz (25 mips), which can access 2 MB work RAM: 1 MB of fast DRAM and another 1MB of slower SDRAM.
There are 2 graphic processing units: VDP1 for sprites and polygons and VDP2 for scrolls.
An additional DSP usefull for geometry is part of the System Control Unit (SCU). This DSP is not used by the SGL (free for you), only the SBL libs MTH and SPR use it.

A difference between Saturn background image scrolls on one hand and Saturn sprites and SDL blitting on the other hand is, that once set up, you don't have to explicitly redraw Saturn backgrounds, whereas you have to redraw Saturn sprites and SDL surfaces every frame.

About the Saturn Game Tutorial Demo

The Saturn demo that comes with this tutorial shows enough features to start a game from.



Holding down one of the A/B/C/X/Y/Z triggers activates a certain input mode.
For each mode, the D-PAD, START button and L/R triggers have special meanings, which is displayed on screen by the text HUD.

A - sprite x/y position + sprite change
B - sprite zoom/rotate + sprite change
C - polygon x/y/z position, toggle realtime gouraud
X - PCM player, 3 sounds
Y - CD audio player, play, pause, stop, fast forward/backward, next/previous track
Z - polygon x/y/z rotate, toggle realtime gouraud

Programs used:

SaturnOrbit - Saturn development environment
3DEditor - Saturn polygon and texture tool
DXF2SG3.EXE, 3Dto3D.EXE, RB_SaturnDXF.EXE - 3D fileformat converter
BGCON - almighty saturn background converter
CMPRUN.EXE - RLE compression compatible with SBL's CMP library
SegaCueMaker.EXE - CUE sheet creation

The GIMP 2 - GIMP image manipulation program
ACDSee - image slideshow and batch processing program
Blender - 3D modelling tool
NERO - CUE sheet burning

How to set up (the dev environment) SaturnOrbit

SaturnOrbit is a ready-to-go and complete Saturn development environment for Windows XP and Windows 9x operating systems.
The Saturn demo of this tutorial has been made with it.

Installation is easy, these are just some notes:

1. Download SaturnOrbit (55.6 MB)
2. Install it by double-clicking the file. It requires 250-400 MB of free space on hard drive C and will (must) be installed in C:/SaturnOrbit/. Select the components to install. You must at least select one of the two supplied compiler toolchains. Windows 9x users must select the Win9x support, too.
3. After all files are installed you are asked to compile everything. This is not neccessary, but it's recommended to run at least the COFF compiling in order to test the installation and to build the libraries. You can do it later, too, by running BUILDCOF.BAT and BUILDELF.BAT. This takes a while and increases the consumed disk space by 25%-50%.

How to start a new project in SaturnOrbit

There are two ways to compile a project:
1) with Dev-Cpp
2) with batch files

The SaturnOrbit readme says it's not recommended to start a new project from within Dev-Cpp
(because it's incomplete template mechanism would need you to make further modifications to the project options by yourself in order to compile it),
instead you are recommended to start from a copy of an existing example.

So here is how you start:
Extract the Saturn Game Tutorial Demo and modify it's sourcode to your needs!

It can be compiled with Dev-Cpp and with batch files as well. Both compile methods are setup for using the COFF and ELF toolchain.

How to create batch files which use tools from SaturnOrbit
How to set
environment variables like SaturnOrbit

Want to call/execute a tool that's included in SaturnOrbit from a batch file without copying it to the current directory, or without specifying it's full path, which can change?

Set all environment variables used by SaturnOrbit by placing this at the beginning of your batch file:

COFF compiler toolchain:

ELF compiler toolchain:

How to write a basic SGL Saturn program

The basic C code structure of a SGL program for SEGA Saturn:

#include <SGL.H>
#include <sddrvs.dat>


void ss_main()
slInitSystem(TV_320x240, tex_SpriteTable, 1);

// init CD block and CD file system

// init sound and CD audio

// init sprite GPU, upload textures

// init background GPU, upload images
while(1) {
Uint16 data = Smpc_Peripheral[0].data;

// check for game exit
if(((data & PER_DGT_TA) == 0) && ((data & PER_DGT_TB) == 0) && ((data & PER_DGT_TC) == 0) && ((data & PER_DGT_ST) == 0))

// do game, start sounds

// GFX output


// return to demo demo loader
// or activate multiplayer

How to do sprite and animation preprocessing with The GIMP script

The GIMP is a free image manipulation program which can process a batch of work by the use of scheme scripts.
With this tutorial comes the script SegaSaturn.scm, which supports the creation of sprites and animations, the setting of a transparent color (colorkey) and the use of images with alpha channel. You can join all images (of the same size) of an animation together which enables you to later store them compressed in one file on the Saturn game CD.
Note: some procedures of the script require The GIMP 2.

put SegaSaturn.scm into your GIMP script folder, something like

How to execute a script procedure?
A) right-click on the image to work on, then select Script-Fu/SegaSaturn/procedure-of-your-choice
B) on The GIMP main window select Xtns/Script-Fu/SegaSaturn/procedure-of-your-choice
Most procedures will open a window to ask for parameters.

Procedure description:


Puts a new layer of the specified color behind all other layers of the image, such that all transparent pixels will have this color.


Saturn cannot display sprites with an alpha channel, so this prepares images with alpha channel to get a transparent color. Basically switches the transparent pixel scheme from alpha channel to colorkey.
After running the script, the alpha channel does only contain two values: 0 or 255 (full opaque or full transparent).


Reads multiple image files specified by file name pattern and creates one new image containing each of the images in a seperate layer.
Animations and movies are represented that way in The GIMP. You can playback the animation by right-clicking on the generated image and selecting Filter/Animation/play.


Starting from an animation (e.g. an image with multiple layers, like generated with sprs2lyr) a new image is created which contains only one layer onto which all previous layers (frames of an animation) are pasted, started from top to bottom. This image can then be converted to raw Saturn format with BGCON.

How to convert PCM sound effects

SEGA Saturn can play a maximum of 8 PCM channels simultaneously with heighest quality being stereo, 16 bit resolution and 44100 Hz samplerate.
(However, the Saturn Demo shows a max of 4 sounds of 8 bit, mono, 8000 kHz)

Conversion of PCM sound effects is done in 2 phases:
preprocessing and conversion to Saturn hardware format.


Starting with sound files of various formats (.wav, .mp3, .ogg, .wma) and different specs (mono or stereo, 8 or 16 bit resolution, samplerate of maybe 8000 Hz - 44100 Hz) you need to convert them to .wav files of uncompressed PCM data with appropriate specs for number of channels, resolution and samplerate.

Use a tool like CoolEdit 2000 for this.

Some special attention to the sound specs:
Q1: How many sound FX do you want to use in total?
Q2: How many (and which) sound FX can play simultaneously?
Q3: Which of them must be always available/playable?
Q4: Which are played not very often or are very long?

You see these questions focus on the memory space consumption of your sound FX files.
You can only include few 100 kBytes of PCM data into your source code (Q3) and the low work RAM memory can hold a maximum of 1 MByte of PCM data (Q4) that must be loaded from CD.

Beyond memory consumption there is another reason to lower the quality (mono instead of stereo, 8 instead of 16 bit resolution, 1/2 or 1/4 of original samplerate) of sound effects (Q2):
The Saturn can play 8 PCM channels simultaneously, but in practice this results in a lot lower count of sound FX played concurrently. Obviously stereo takes 2 channels. But also 16 bit resolution and 44100 kHz samplerate lower the number of available PCM channels.

So spend some time to find out the right settings to maximize sound quality for your purpose.

mono, 8 bit resolution and 8000-11025 Hz samplerate
are acceptable for most sound FX and voice samples


Okay, having the sound FX as uncompressed (e.g. containing a chunk of uncompressed PCM) .wav files, you can convert them to C source files for inclusion in your Saturn binary, or to binary PCM files, which can be loaded into low work RAM, for example.

The used tool is called RB_SaturnPCM.EXE (C:/SaturnOrbit/TOOLS/). It's called from the commandline.

RB_SaturnPCM.EXE shot.wav c
-> produces shot.pcm and shot.c

RB_SaturnPCM.EXE shot.wav
-> produces shot.pcm

If you gotSaturnOrbit, you don't have to have RB_SaturnPCM.EXE in the same directory, instead open a console window with PATH preset to find RB_SaturnPCM.EXE by double-clicking one of CONXCOF.BAT or CONXELF.BAT (WinXP, for Win9x use CON_COF.BAT or CON_ELF.BAT, all found in C:/SaturnOrbit/).

Best option is to write a batch file of commands. See
How to create batch files which use tools from SaturnOrbit

How to convert background CD audio music

There is almost nothing to do.
In order to burn a Saturn CD with audio tracks using the CUE sheet method (see How to burn a CD with audio tracks),
you need the audio files to be in WAV or MP3 file format.
Most files should already be in that format, if not use the converter of your choice.

The specs of CD audio are stereo, 16 bit resolution and 44100 Hz samplerate.

How to convert background images (+ compression)

In SGL you can setup a bitmap scroll of size 512x256, 512x512, 1024x256 or 1024x512. Images transfered to this scroll can be smaller or equal to the size of the bitmap scroll.


Use an image manipulation program like The GIMP to resize the image to the screen resolution or whatever you need, but be sure it does not exceed the size of the bitmap scroll ( 512x256, 512x512, 1024x256, 1024x512).

You may also want to convert it to paletted or RGB color mode.

Save it as .TGA file.


The almighty tool BGCON (C:/SaturnOrbit/TOOLS/BGCON/) is used to convert the TGA image to Saturn hardware format. You can output the image as binary or C source file. Compression is also possible, like RLE, which is compatible to the SBL's CMP lib and it's compression tools and DHUFF, which is more efficient and must be decompressed with BGCON's DeHuff.o lib.

BGCON can get it's commands from a text file:

The command file looks like this:
(input: TGA image format, output: 15 bit color depth, bitmap, dhuff compressed, all pixels not transparent, save as binary and as C source)

CD 15
L lava.tga
S lava.bin
S lava.c lava

To avoid all pixel being transparent and not displayed, you should specify the transparent color. I got none, so it worked with -1 for me.

See How to create batch files which use tools from SaturnOrbit

How to convert sprites, textures and animations

These are preprocessing steps before How to create a sprite/texture table.
(targets 15 bit RGB here, although paletted is possible)

Restrictions to meet are:
  1. maximum size (in SGL) for sprite/texture table in VDP1 VRAM is 0x70000 = 458752 bytes = 448 kBytes
  2. width must be multiple of 8
  3. minimum size is 8x1 pixel (width x height)
  4. maximum size (for 3DEditor) is 256x256 pixel (although VDP1 manual says 504x255, all width x height)
  5. file type .bmp or .jpg
This section uses procedures of the supplied SegaSaturn.scm script for The GIMP 2 (see How to do sprite and animation preprocessing with The GIMP script).

Sprites & textures:

For all images do:
(using The GIMP, for example)
  1. Set bitmap mode to RGB.
  2. Scale the image down if necessary (to meet R1, R3 and R4). Scaling on PC is better than on Saturn, as you can use bicubic or bilinear filtering while Saturn does only some sort of nearest neighbor which also increases rendering time (but no homebrew ever reached a limit).
  3. Resize it to have a width of multiple of 8 (to meet R2).
  4. Saturn doesn't support an alpha channel (alpha blending), instead transparencies are made by the colorkey method (assigning special colors as transparent). To smartly remove the alpha channel, use procedure maxContrastAlpha.
  5. If the image got transparent pixels, you will have to assign a special color to them. Do this with the procedure setTransColor. Use black (best option if possible, avoids some work later), blue, red, green or any other color that 3DEditor's "Texture List" tool supports to choose on export.
  6. save as .bmp (recommended, no loss due to compression) or .jpg. Use 8.3 character filename format.

Animations (short) in VDP1 VRAM:

How it works on Saturn:
Change the sprite/texture id for a sprite to change it's animation frame displayed.

Different sizes of the animation frames are allowed.

In addition to the steps 1-6 above, make sure that the filename is choosen such that the alphabetical order of all images is equal to the order of frames. Use 8.3 filenames.

Animations (long) in work RAM:

How it works on Saturn:
Overwrite the sprite/texture bitmap data in VDP1 VRAM with data stored in work RAM.

All frames of the animation are assumed to have equal size.

This is special:
For each animation of this kind you will need a dummy frame entry in the texture table where the bitmap data is transfered to.
You have 10 work RAM animations in total. They got 5 different pixel sizes. For 2 sizes it can happen that multiple (let's say a maximum is 3 and 2) animations are displayed at once, which are supposed to be out of synch. Some other sizes are displayed at once, too, but they are in synch, e.g. always show equal frames.
You will need to have 5 dummy frames, one for each size. Plus additional (2 and 1) dummy frames for each out of synch animation instance that can be displayed at once.

  1. If your animation is already available as one image with each frame on a seperate layer (like when opening .GIFs in The GIMP), skip this. If instead all frames are stored as seperate images, make sure their alphabetical order is equal to the frame order. Then use procedure sprs2lyr to create one new image with each frame on a seperate layer.
  2. Now apply scaling (to meet R1, R3 and R4) and then resizing (to meet R2), it will effect all frames/layers.
  3. Generate an empty dummy frame image of the same size as the animation frames, save it as .bmp.
  4. Use procedure lyrs2img in The GIMP, it will create a new image with one layer only containing all frames.
  5. Use procedure setTransColor, see step 4 of Sprites & textures above.
  6. Save the image as .TGA
  7. Use BGCON to convert it to a compressed binary file. Command line:
    (See How to create batch files which use tools from SaturnOrbit)

    with TGA2DHUF.TXT containing:
    CD 15
    IF TGA
    TRANS -1
    OF BIN
    L newbie.tga
    S newbie.bin

    BGCON is meant to be used for background scrolls. The method for transparent pixels differs between scrolls (setting RBG flag to 0, the most significant bit of the pixel) and sprites (transparent color code 0x0000, all other colors MUST HAVE RGB FLAG SET TO 1). So you can NOT set the transparent color with BGCON (but you need to specify RGBHI ON and TRANS -1, to set the RGB flag to 1). Instead you would need to do one of this:

Note for completeness:
To put all frames into one binary file there is another way, allowing frames of different size, that is also used to create a binary sprite table (see How to create a sprite/texture table to be loaded from CD (+ compression)).
Instead of putting all frames into one image, you can load different images into BGCON and append the output for each image to the binary file. But that's not as good in compression as the method presented here.

How to convert 3D data

Conversion for short is:
  1. 3D modelling tool (like blender) creates geometry only
  2. export as .DXF (optional: partitioned export, to easy material editing later)
  3. convert to DXF with 3DFACE entity only (with 3Dto3D.EXE or RB_SaturnDXF.EXE, compatibility reasons)
  4. convert to SG3 (with DXF2SG3.EXE, optional: scaling, position, rotation, quad creation, dual face, normal invert)
  5. apply Saturn specific material properties, create texture table
  6. export 3D model as .MDL (C source), export texture table as .TXR (C source) or create binary texture table

1. Any 3D modeling tool that can export DXF files can be used to create the geometry data. I use blender.

Don't waste your time applying material properties at this point, because all that will be lost after conversion.
Saturn specific material properties will be added later in 3DEditor (C:/SaturnOrbit/TOOLS/SSSDK/).

There is no way to modify the geometry in 3DEditor. You would have to apply geometry changes in the 3D modelling tool and do the conversion again with all previous material settings lost. So be carefull.
Size, position and rotation can also be changed in a middle conversion step later (by DXF2SG3.EXE).

You should also take in account that the hierarchy of the 3D model will most likely be destroyed.

2. All geometry finished, now prepare to export.

Although 3DEditor got some face select tools, it is sometimes faster and easier to seperate the 3D model into few pieces of similar material and export each to a seperate .DXF file.

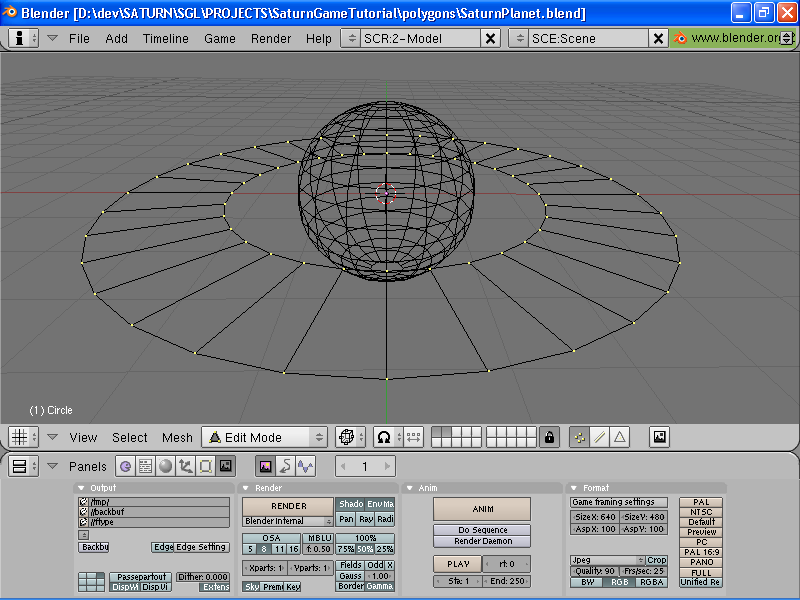

(like I did with Saturn planet and rings on which I applied a sliced texture later)

All object transformations can be lost in following conversion steps. So you have to apply all object transformations to all the points instead.

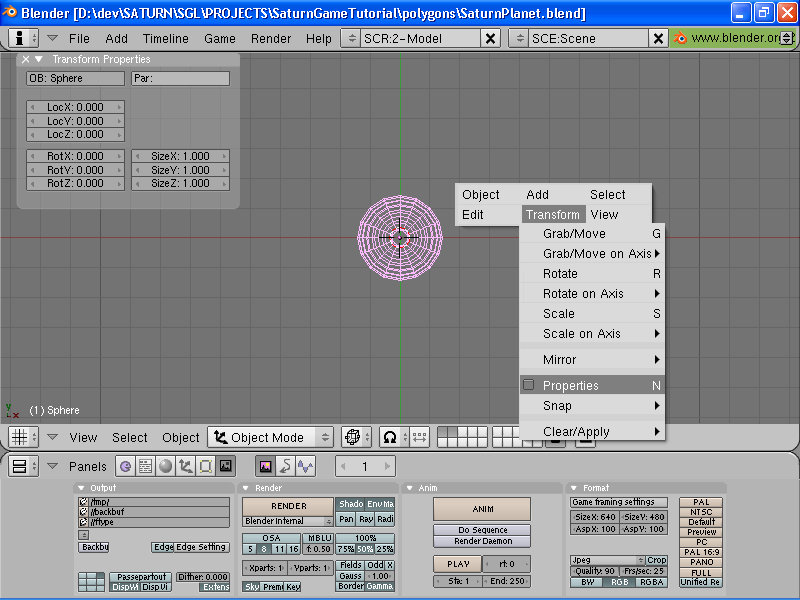

You can check if such object transformations are present:
(no translation, rotation or scaling in this image, so it's OK)

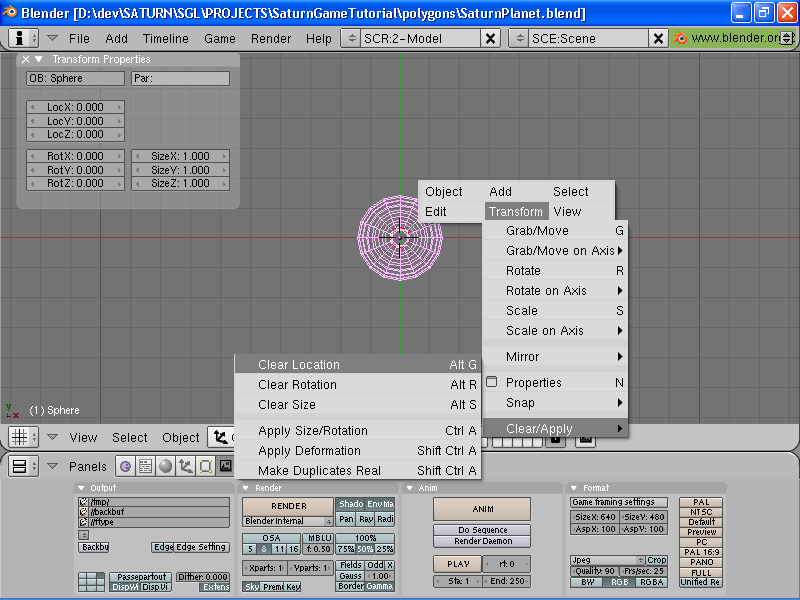

If there are object transformations, clear them and apply these to the points instead.

Now export the objects as .DXF.

3. Some newer geometry entity types of DXF are not supported by DXF2SG3.EXE, but 3DFACE entity is.
There are two tools to use for this task:

3Dto3D.EXE doesn't preserve quads, it converts all to triangles. Although DXF2SG3.EXE can convert triangles to quads it can fail resulting in a corrupted 3D model.

(example: SaturnPlanet in the demo, see SaturnPlanet2.sg3 resulting from SaturnPlanet2.DXF)
Command line:
3DTO3D.EXE SaturnPlanet.DXF /dSaturnPlanet2.DXF /if4 /of13

This tool got a lot of options and preserves quads. Besides to extract just the geometry (-x), it got an experimental mode to preserve all other info in the file (like hierarchy) which just modifies the geometry. It is experimental because it's not known exactly what DXF features are supported by DXF2SG3.EXE and 3DEditor. You only need to experiment with this if the standard option (-x) don't fit your needs.
Command line:
RB_SaturnDXF.EXE SaturnPlanet.DXF -o SaturnPlanet3.DXF -x

4. Convert to .SG3 for use in 3DEditor.

You know the Saturn got a different coordinate system. Unfortunately this is not fully taken care of by DXF2SG3.EXE.
With one sided polygons, the model will look inverted or be totally invisible. You will have to invert normals (-back) or make dual sided polygons (-dual).
Possibly the geometry itself is not displayed the same in 3DEditor like in the 3D modelling tool. The coordinate system conversion could thus be totally done by applying rotation (-rot x y z) and flip axis direction with negative scaling (-scl x y z).

It allowes to invert normals (-back), convert triangles to quads (-quad), create dual plane polygons (-dual) and apply object transformations like scale (-scl x y z), rotation (-rot x y z) and translation (-pos x y z)
Command line:
DXF2SG3.EXE SaturnPlanet3.DXF -back -scl 10 10 10 -rot 90 0 0
DXF2SG3.EXE SaturnRings3.DXF -back -dual -scl 10 10 10

3DEditor got tools like translate, scale, rotate which are all just used for further editing and don't effect the 3D model itself.
There is a face select mode to select one or more faces. Faces can be selected by holding down left mouse button and form a rectangle. The edit menu supports face selection with "Select clear" and "Select all".
The last tool is used to move and scale the sliced texture onto the model.

Material properties can be applied to the selected faces with the material property tool.
(color, texture id, use light, use gouraud, 4 gouraud table color values, dual or single plane, mesh and other Saturn specfic stuff...)

You might want to apply textures to the model using the "Texture List" tool. See
How to create a sprite/texture table
How to span a texture across multiple polygons

6. In 3DEditor, select File -> Save As and save it as .MDL file which can be included in your C source code.

Expert note:
This obviously makes the 3D model hard coded in your binary executable. To create a binary 3D model to be loaded from CD, look at the tool RB_SaturnMAP included in the RB library (C:/SaturnOrbit/RB/SaturnMAP/). It can convert any number of .MDL files output from 3DEditor to a binary file.
It's main purpose is to create a 2D space partitioned representation of the 3D data, like it's used in the "Making a 3D racing game for SEGA Saturn" project (and similar in SGL examples SHOOTING, BIPLANE, DRIVING and DRIVING2).
It works by editing a C file to set properties and parameters in which the .MDL files are inluded. Everything has to be compiled and then executed to produce the desired output. It's binary and C source output functions can be used for your purpose.

How to create a sprite/texture table

We will use 3DEditor's (C:/SaturnOrbit/TOOLS/SSSDK/) tool "Texture List" to easily generate all the texture table data. For sprites an additional SPR_ATTR table is needed, which remains to be hand written.

These tables and data are needed for your game to display sprites/textures on Saturn:

bitmap data:
content: raw pixel data
used for: transfer to VDP1 VRAM
availability: not used after transfer
Uint16    texture_SpriteTable000[] = {

TEXTURE table:
content: width, height, VDP1 VRAM destination
used for: slInitSystem()
availability: has to be always present for drawing
TEXTURE    tex_SpriteTable[] = {

PICTURE table:
content: texture id, color mode, bitmap source
used for: transfer to VDP1 VRAM
availability: not used after transfer
PICTURE    pic_SpriteTable[] = {
PICTBL(  0, COL_32K, texture_SpriteTable000),

SPR_ATTR table:
content: sprite drawing attributes
used for: drawing
availability: needed for drawing only
SPR_ATTR attr_SpriteTable[] = {

  1. prepare images (see How to convert sprites, textures and animations)
  2. open 3DEditor and open it's tool "Texture List"
  3. load existing .SGT texture table, if you already had one
  4. import sprite/texture images
  5. export (Save as)

Ensure all sprite/texture images meet the restrictions here:
How to convert sprites, textures and animations

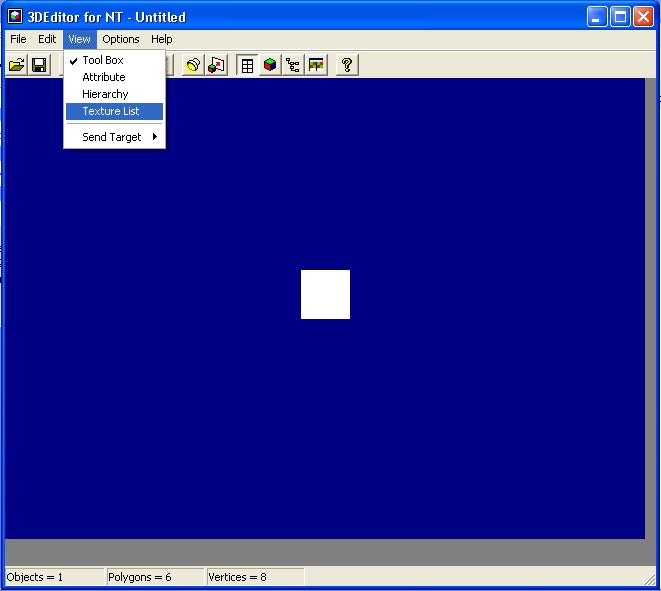

2. Open 3DEditor (C:/SaturnOrbit/TOOLS/SSSDK/) and select the "Texture List" tool by clicking "View -> Texture List" or the button left from the "?" button.

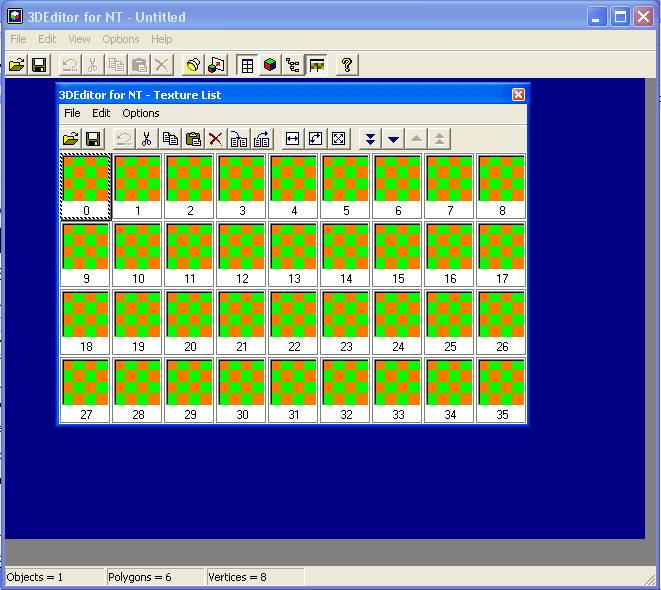

An empty texture list looks like this:

3. If you have been working on the texture list before, load that .sgt file by clicking "File -> open".

4. To import a new sprite/texture select the position where to insert it. The sprite/texture is identified for drawing on Saturn by it's position id in the list.

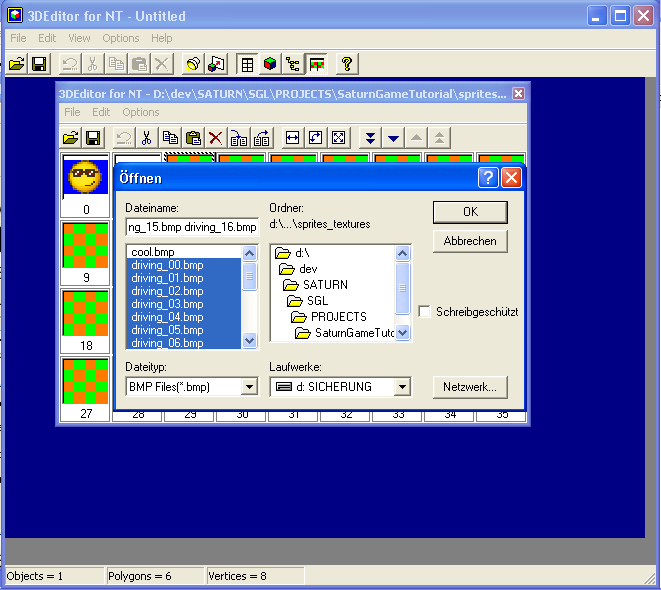

Then select "File -> Import" and select the .bmp or .jpg image you want to import and press OK.

For importing multiple images at once, hold down SHIFT while selecting files and then press OK.
You may want to import multiple images for animations in VDP1 VRAM, for example.
See How to convert sprites, textures and animations.

After importing multiple textures in "Texture List" tool, 3DEditor might not respond like file dialogs are not opened anymore.
So save the texure list by pressing on the save button. It will most likely be saved as Untitled.sgt in the folder last used. After saving, close "Texure List" and close 3DEditor. Starting 3DEditor again will then work correctly.

The "Texture List" is able to cut and insert sprites/textures into the list and thus change the order of images, e.g. the id assigned.

When reordering or deleting textures in "Texture List" tool, the 3D models that use textures of this table by id will have wrong textures assigned, since the same id does not denote the same texture anymore.

Example: texture list of the demo containing all sprites
(textures will be added later)

5. If you want to be cool and load the texture table bitmap data from CD,
see How to create a sprite/texture table to be loaded from CD (+ compression).

In most cases you want to hardcode the data into your binary executable by including it in your C code.
Two ways are possible, depending on the number of transparent colors used (A or B):

A) If all sprites/textures got the same transparent color:

In "Texture List" select "File -> Save as" one .TXR C source.

When saving as .TXR file, the "Texture List" tool will assume that black is the transparent color.
If you got a different transparent color(or none), you need to correct that with the search and replace function of a text editor (like Dev-Cpp IDE).
  1. replace all occurences of 0x0000 by 0x80000 to make black visible
  2. replace all occurences of the transparent color by 0x0000.
    Example: In the demo it's blue, all 0xfc00 replaced by 0x0000
Finally hand write the SPR_ATTR table of sprite drawing attributes.

B) If different sprites/textures got different transparent colors:

Export as multiple C source files:

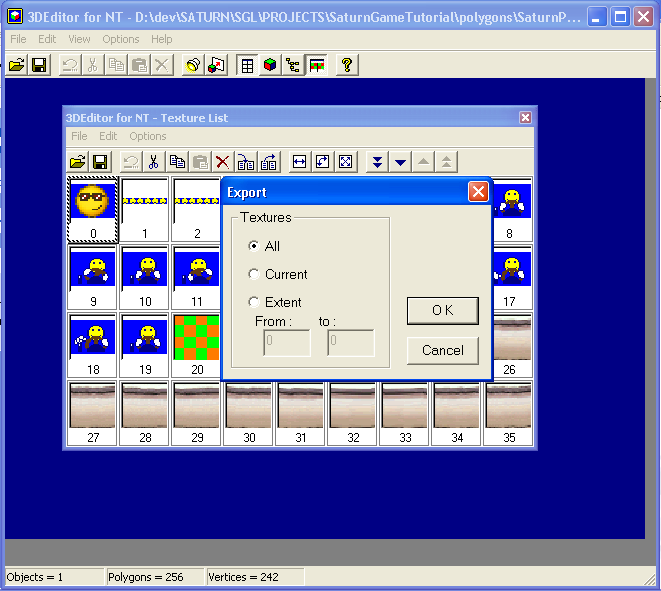

In "Texture List" select "File -> Export". A window will pop up asking for an intervall of sprites/textures to export.

Make your choice and press OK.
For saving files specify the filename prefix and select .C file type.
Now you will be asked for every image to specify it's transparent color.
When finished you will have a number of C sourcefiles named:
<filename prefix><number>.c

These files contain only the raw bitmap data.
To get the TEXTURE and PICTURE tables, do like in 5.A):
"File -> Save as" one .TXR file.
Copy and paste the TEXTURE and PICTURE table from the .TXR file into your sourc code.
For sprites only,
hand write the SPR_ATTR table of sprite drawing attributes

How to create a sprite/texture table to be loaded from CD (+ compression)

This is to transform the bitmap data of the sprite/texture table into one (compressed) binary file, which can be loaded from CD to lower the size of the binary executable by up to 0x70000 = 458752 bytes.
It enables the use of multiple sprite/texture tables, too.

We will use BGCON.EXE to create the binary and CMPRUN.EXE to compress it with RLE compression.

  1. create texture table
  2. export all as .bmp files
  3. batch convert to .TGA file format with ACDSee
  4. create uncompressed binary with BGCON.EXE
  5. optional: compress binary (RLE)

1. You'll need to have a .SGT texture list created, see How to create a sprite/texture table and follow the steps untill and including 4.

2. Follow the steps just like 5.B). But instead of exporting multiple .c files, export multiple .bmp files.
Take care of 8.3 filename format (so specify a short filename prefix, maybe 5 or 6 characters), this is required for BGCON to import them later.

Now you should have all sprite/texture table entries as .bmp files.

3. Use a tool of your choice (like ACDSee) to batch convert the file format from .bmp to .tga.

In ACDSee: select all sprite/texture image files, right click on them and select "Convert..."

Choose .TGA as output image format:

4. We will use BGCON.EXE to load all images and append each of them to the binary file we want to create.
Write a command file for BGCON.EXE to do this:
(Example from SaturnGameTutorial/demo/sprites_textures/SprTbl_CD/)

CD 15
L spr000.tga
S SprTbl.bin
L spr001.tga
S SprTbl.bin
L spr002.tga
S SprTbl.bin
L spr309.tga
S SprTbl.bin

Read and follow this pitfall info about using BGCON for sprites and about setting the transparent color.

Create the binary by executing BGCON with the command file:

5. Optional: run CMPRUN.EXE to compress the binary.
On Saturn it can be decompressed with
CMP_DecRunlen(in, &out, maxoutsize);

In the demo I use CMP_DecRunlenWord(buffer, &out, 0x100000) to not link unused object code from CMP, since I know it's word unit.


Why not compressing with BGCON?
First, using DHUFF compression will simply not work. RLE instead does work, but BGCON will compress each file seperately. This means on Saturn you would have to decompress every file seperately. This is inefficient and furthermore impossible, since you don't know the offsets where the files start in the binary. So instead we compress the whole binary with CMPRUN.EXE and decompress the whole file on Saturn.

How to span a texture across multiple polygons

The Saturn VDP1 sprite GPU does always draw four-sided polygons aka quads and the texture assigned to a polygon is always applied as a whole. The VDP1 does not support texture coordinates. This means you can not map parts of a texture to a polygon in hardware at runtime. The workaround is to perform the usual texture mapping (orthogonal, cylindrical, sperical mapping of a texture onto multiple polygons) before runtime, to create a lot of new smaller rectangular texture images.

The only tool to do this is the "Slice Texture" tool of the 3DEditor (C:/SaturnOrbit/TOOLS/SSSDK/) and it's "Texture List" tool.

How it works:
Take a huge texture and project it onto the desired selected area of a 3D model. "Slice" will generate a couple of unique little textures, one for every selected polygon.


  1. prepare texture to slice
  2. open 3DEditor, load 3D model
  3. select faces to apply sliced texture
  4. open "Texture List" and optionally load .SGT sprite list
  5. import texture
  6. select "Show sliced"
  7. position 3D model and sliced texture
  8. do slice operation
  9. save updated .SGT texture list and updated .SG3 3D model

1. Make sure the texture image to slice meets restrictions 2-5 of
How to convert sprites, textures and animations

2. Start 3DEditor, select "File -> open" and load the .SG3 3D model to texture.
To create such a 3D model, see:
How to convert 3D data

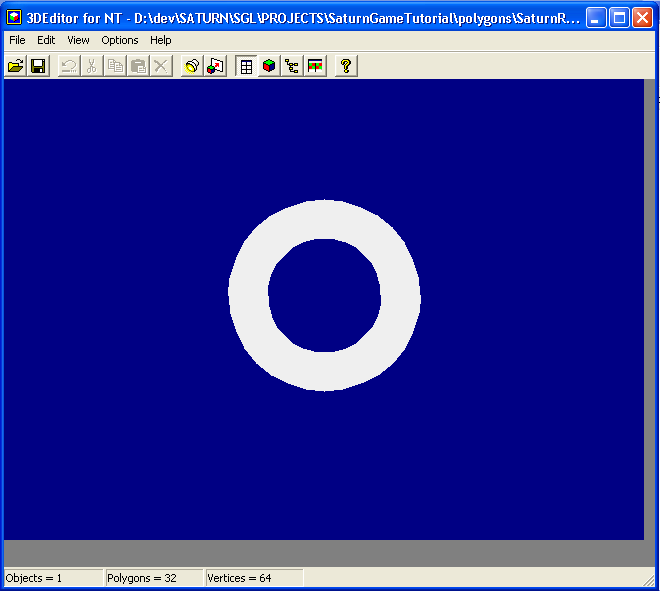

This is the Saturn ring of the demo with 32 polygons:

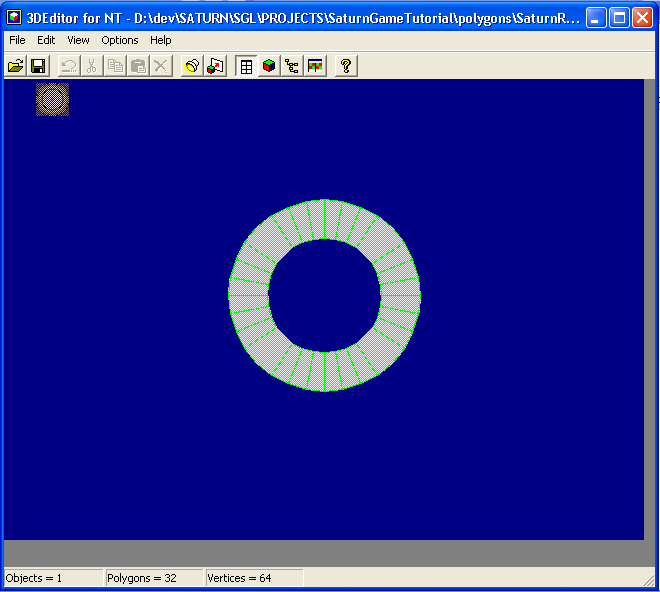

3. Select the "face select" tool and select all faces on which you want to map the texure.

4. Open up the "Texture List" tool by selecting "View -> Texture List" or pressing the button left from the "?" button.

If you already got a partial texture list: in "Texture List" select "File -> open" and load the .SGT texture list created before.
You might have started to create the texture list here:
How to create a sprite/texture table
How to span a texture across multiple polygons

5. In "Texture List" select the last free texture list entry. It's important that the entries after the selected one are all free.

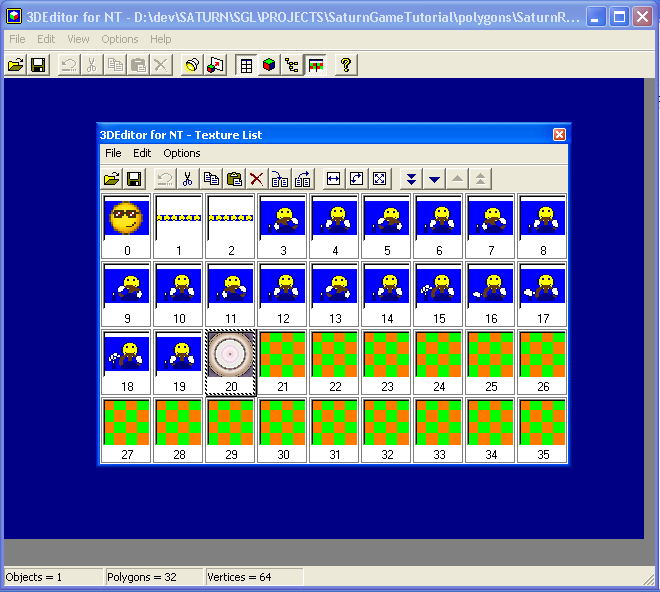

Select "File -> Import" and import the prepared texture to slice.

The imported texture to slice is only used as source for the slice operation. The content of this texture list entry can (and should) be cleared after slicing is done.

6. In "Texture List" select "Options -> Show Sliced". Then close the "Texture List" to view the 3D model, it's selected faces on which to map the texture and the texture to slice.

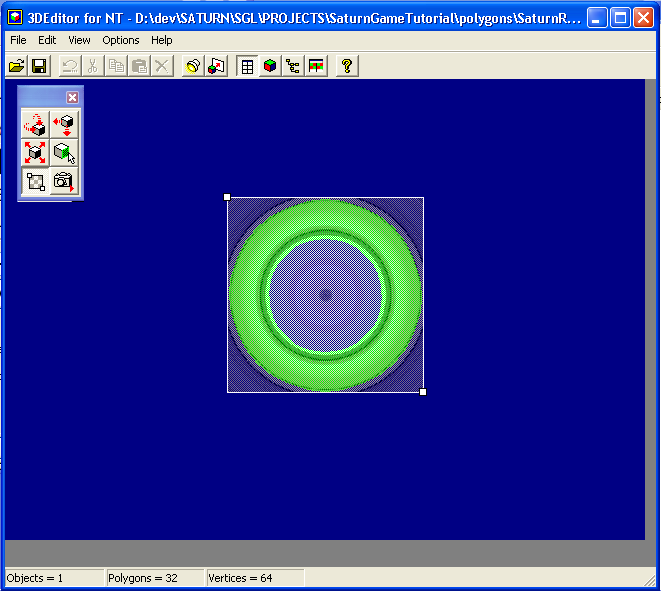

7. Now use the tools rotate, translate and scale to bring the 3D model in the desired position. You should have a view on most selected polygons.

Next select "move sliced texture" tool to move and scale the texture to slice such that it covers the selected faces like you want it to.

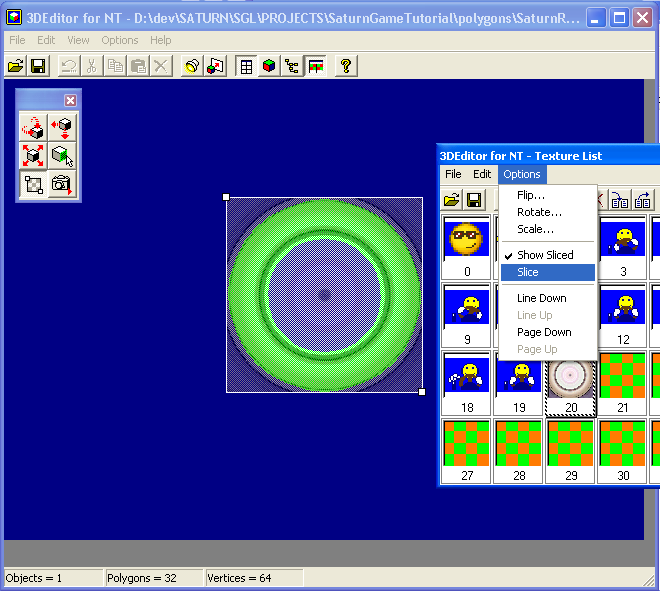

8. Open up "Texture List" again and select "Options -> Slice".

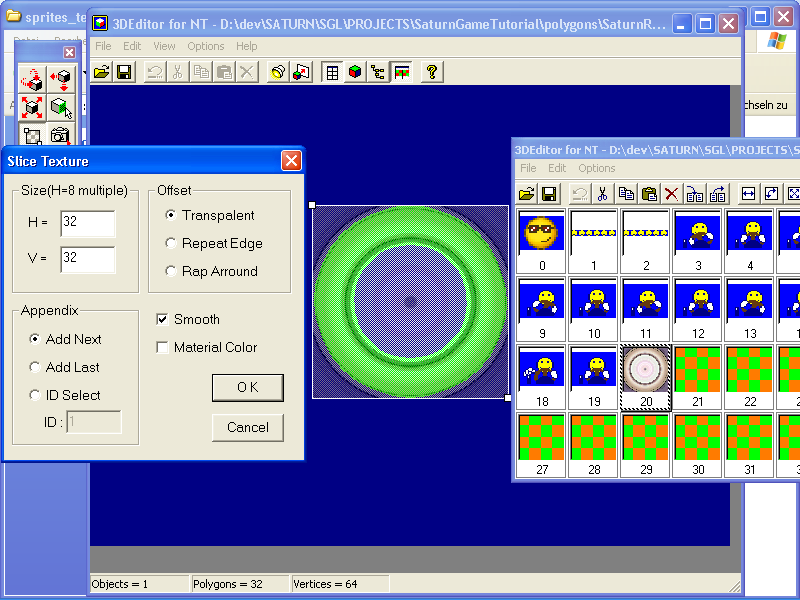

A window will pop up allowing you to specify slice options:

"Offset" - the type of texture mapping
"Transpalent" - orthogonal, just like you see it
"Repeat Edge" - repeat where texture is too small

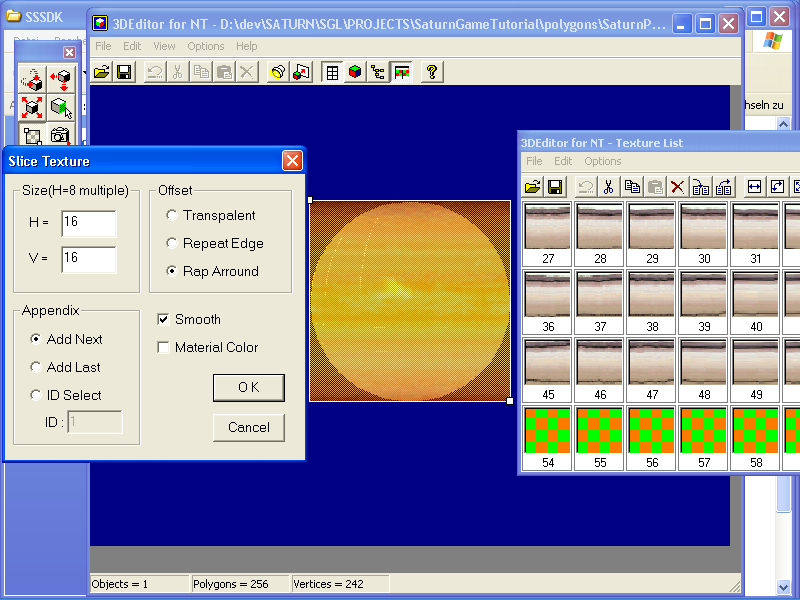

"Rap Arround" - wrap texture around (for spheres, ...)

"Size" - width and height of each of the new textures generated through slicing

When slicing a texture into a lot of new textures,
take care to not use to big values for their width and height.
Example: Saturn planet of the demo got 256 polygons to texture. Selecting size 32x32 will lead to 256 textures of 32x32 pixels with 2 bytes each = 512 kByte which is more space than the 448 kByte of available memory in VDP1 VRAM.

"Appendix" - at which texture list entry to start placing the texture slices in

"Smooth" - smooth resampling

Example: the Saturn ring of the demo:
(orthogonal mapping)

Example: the Saturn planet of the demo:
(Need small size for sliced textures and "Rap Arround")

Hit OK to start slicing.
You will be asked to save the state before slicing, since the operation can't be "undo"ne.

A lot of new textures are now appended to the texture list.

You should definitely delete the source texture image that's just been used for slicing by selecting it and press "DEL" key.
Don't use the backspace function of "Texture List", as it will mix texture assignments, see this pitfall. The texture is not used anymore, it's big and it will waste too much memory space in VDP1 RAM.
So you will have an empty hole in the texture list, which on export is filled with an unused empty texture bitmap of size 8x8.

9. Save the updated texture list.
Don't forget to save the updated 3D model later, too.

To have a look on how the texured 3D model looks like,
hide the texture to slice by selecting "Options -> Show Sliced" again,
close "Texture List" and
in 3DEditor deselect all faces by selecting "Edit - > Select Clear".

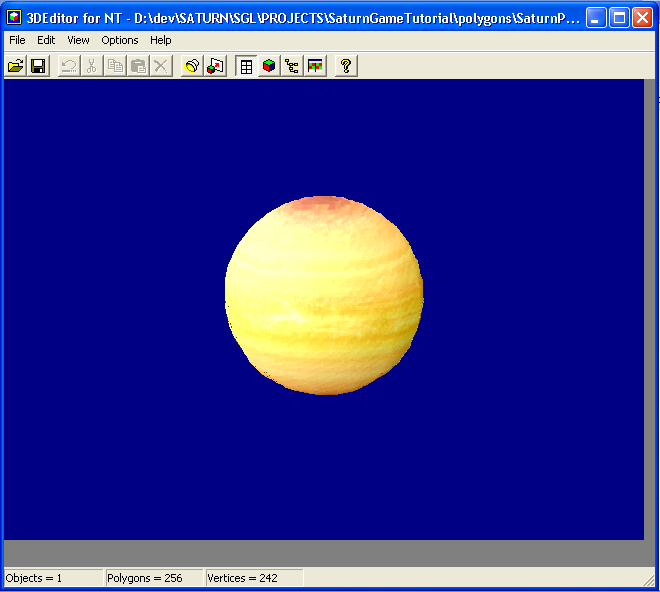

Example: textured and gouraud shaded Saturn planet from the demo:
(SaturnGameTutorial/demo/polygons/SaturnPlanet3_textured.sg3 + SaturnGameTutorial/demo/sprites_textures/SpriteTable.sgt)

In 3DEditor save the updated textured 3D model.

How to handle controller input

Controller status is updated every frame by the SGL and written to the Smpc_Peripheral[] array. There are two controller ports, each usually having at most 1 peripheral attached. But the Multi Tap allows six peripherals per port, giving a total maximum of 12 players! So there are variables containing the number of attached peripherals per port: Per_Connect1 and Per_Connect2.

This point here covers only the standard joypad inputs like D-PAD, START, A, B, C, X, Y, Z, L and R trigger, which can be recieved by the standard control pad, the analog control pad, fighting stick and the racing wheel. Mouse, analog thumb pad and light gun are not covered.

The SGL also keeps track of buttons being released (Smpc_Peripheral[index].pull) and pressed (Smpc_Peripheral[index].push), in addition to the current button status (Smpc_Peripheral[index].data).

Check for attached peripherals:

// check if pad is connected
// and return first pad with input
// multi tap compatible, up to 12 pads
// return:    -1      - no pad connected
//            -2      - no input
//            else    - pad index
Sint8 demo_getFirstPadIndex()
Sint8 index;

// is there even a pad connected?
// check number of attached peripherals
if((Per_Connect1 + Per_Connect2) == 0)
return -1;
// check up to 6 pads on left connector
for(index = 0; index < Per_Connect1; index++)
if((Smpc_Peripheral[index].data != 0xFFFF) || (Smpc_Peripheral[index].pull != 0xFFFF))
return index;

// check up to 6 pads on right connector
for(index = 0; index < Per_Connect2; index++)
if((Smpc_Peripheral[15+index].data != 0xFFFF) || (Smpc_Peripheral[15+index].pull != 0xFFFF))
return index;
// no inputs found!
// that is no error
return -2;

Access button status:

Use these macro flags to mask out the correct bits:
directional pad:
6 buttons:
shoulder buttons:


START button down
if( (Smpc_Peripheral[index].data & PER_DGT_ST) == 0)

START button pressed this frame
if( (Smpc_Peripheral[index].push & PER_DGT_ST) == 0)

Standard button combo to leave the Saturn game and launch the multiplayer:
Uint16 data = Smpc_Peripheral[index].data;

if(((data & PER_DGT_TA) == 0) && ((data & PER_DGT_TB) == 0) && ((data & PER_DGT_TC) == 0) && ((data & PER_DGT_ST) == 0))


How to use PCM sound effects

There are 8 PCM channels available, but remember that stereo takes up two channels per sound. Using high quality sound with 16 bit resolution and 44.1 kHz samplerate might lower the number of available PCM channels, too.
(the demo can play up to 4 sounds of 8bit, mono, 8000 kHz)


After slInitSystem(), initialize sound system
#include <sddrvs.dat>

void init_SFX()
char sound_map[] = {0xff , 0xff};

slInitSound(sddrvstsk , sizeof(sddrvstsk) , (Uint8 *)sound_map , sizeof(sound_map));

Include small PCM sounds into your binary (high work RAM):
#include "soundFX/electronicdoor.c"

and load big PCM sounds from CD into low work RAM:
char *shot = NULL;
Uint32 shot_size = 382464;
PCM shot_dat = {(_Stereo | _PCM16Bit) , 0 , 127 , 0 , 0x0 , 0 , 0 , 0 , 0};

void load_PCM()
Sint32 load = GFS_Load(GFS_NameToId("SHOT.PCM"), 0, (Uint32 *)0x200000, 0x100000);
if(load <= 0)
slPrint("ERROR loading file shot.pcm!", slLocate(2, 11));
shot = (char *)0x200000;
shot_size = load;


Start playback, stop playback and check if still playing with:

// starts playback
// returns
// 0..7
PCM channel on success
// -1 command buffer full
// -2 no channel left
// -3 PCM buffer full
slPCMOn(&shot_dat, shot, shot_size);

// stops playback
// returns:
// TRUE on success
// FALSE command buffer full

// determines if channel is on playback
// 1 if playback
// 0 if not

Expert note:

This method is the most processing power saving method to play PCM.
The downside is that the PCM data needs to be in memory and thus sound length and quality is restricted by the amount of free work RAM available.

However, using the PCM library from SBL, you can play back AIFF sound files, both uncompressed and ADPCM compressed. Playback techniques are: Memory playback, file playback (only one file access) from CD, or stream playback from CD (Streaming allowes multiple file accesses concurrently. So while playing, you can load other data in the background or play a second file).

But AIFF sound files are not in Saturn hardware format and require CPU time for conversion. The CPU load with ADPCM encoded files is quite huge.

For an example on how to use SBL's PCM library together with SGL, look into Rockin'-B's Saturn SoundPlayer.

How to use CD audio

Playback of CD audio music does not consume any processing power on Saturn!
While CD audio playback is in progress, you can't access the data track to read files.
(if you do want to access files and play background music simultaneously, read the expert note in How to use PCM sound effects)


After slInitSystem(), initialize sound system
#include <sddrvs.dat>

void init_SFX()
 char sound_map[] = {0xff , 0xff};

 slInitSound(sddrvstsk , sizeof(sddrvstsk) , (Uint8 *)sound_map , sizeof(sound_map));

Initialize the CD block by calling one out of those functions with appropriate parameters:
// most basic CD block initialization
// GFS CD file system init
// SGL CD file system init

Enable CD audio:
slCDDAOn(127, 127, 0, 0);

You might also want to check for the track numbers of the first and last track.
The first track is usually a data track.

Uint32 toc[102];
Uint8 cdtrack;

void getFirstAudioTrack()
// set track
cdtrack = (toc[99] & 0x00FF0000) >> 16; // first track number
// avoid setting the data track,
// select first audio instead
if(cdtrack < ((toc[100] & 0x00FF0000) >> 16)) // last track number
else cdtrack = -1; // no audio tracks


In the demo to this tutorial, you find some CDDA functions that behave just like a normal CD player.
The only difference might be, that doing play twice doesn't pause automatically, since that is not always wanted.

After your game is initialized and all needed file data is loaded from CD,
do a CDDA_stop() in order to allow the CDDA functions to work

void CDDA_pause();
void CDDA_play(Uint8 track);

// stop CD, seek home position
void CDDA_stop();

// start CD scan / fast forward
// or continue playing
void CDDA_fwd();

// start CD scan / fast rewind/reverse
// or continue playing
void CDDA_rvs();

// returning one of the strings below
char *CDDA_getStatusName();
char *CD_status[] = {

Expert note:

While the copy protection requires the CD to be unlocked (checking the security ring) in order to access the data track, this is not needed to play back CD audio tracks.
So in theory, you can use a plain audio CD without data track for background music in cartridge applications (bootable ROM carts), or in binaries that are uploaded to Saturn from the CommsLink Cart onto an Action Replay cartridge.

How to use text display

The SGL per default uses the normal scroll screen 0 (NBG0) for text display of strings, fixed point numbers, hex values and matrices.
What's once drawn to this text scroll remains there untill it's overwritten. The font is equally spaced with each character being 8x8 pixel in size.
If the screen is set to 320x240 pixels, you can display 40x30 characters on screen. A higher screen resolution will display more characters on screen.
Per default, all other scrolls (sprite scroll, too) are drawn behind the text scroll, which is transparent.

Drawing is performed to a given character position on screen. The origin (0,0) is top left corner.

Unfortunately, the NBG0 is the only scroll capable of displaying 16.7 million colors (24 bit color depth) and it's wasted with displaying a one colored font! There might be the possibility to use another scroll screen than NBG0 as well as to use a custom sprite based font.

Printing functions:

// string printing to top middle of screen
slPrint("A string", slLocate(10, 0));

// print a fixed like a float
FIXED fx = toFIXED(1.5685);
slPrintFX(fx, slLocate(10, 1));

// print hexadecimal
Uint32 hex = 0x6ac31;
// no leading zeros
slPrintHex(slLocate(10, 2));
// leading zeros
slDispHex(fx, slLocate(10, 1));

How to use backgrounds

This covers only simple display of bitmap background images and does not claim to be complete ;-).

You may want to read How to convert background images (+ compression).

Once setup, the background is always displayed. Scrolling and other manipulations are not covered here.


Setup (normal background NBG1 as) a bitmap scroll of size 512x256 (or 512x512, 1024x256, 1024x512).

Example code based on the demo:

void init_VDP2()

// the address for background color in VRAM is taken from various examples,

// don't know why
// !!! beware, 1st try the bgcol was the only thing to see on real Saturn
// what exactly is the back_col_adr? maybe the color at this adress is
// interpreted as background color and wheereever such color occurs,
// it's replaced by the given one
// !! all i see is the background color....
slBack1ColSet((void *)BACK_CRAM, CD_Black);
// the debug text lib take the NBG0 scroll <- the only one with 24bits color depth
// priority = 0 -> scroll not displayed
// take farest away
//    slPrioritySpr0-7(0);

// we want bitmap scrolls
// only NBG0 and NBG1 can handle bitmap mode
// color modes:
//      palettet:           COL_TYPE_16, COL_TYPE_256, COL_TYPE_2048
//      rgb:                COL_TYPE_32768, COL_TYPE_1M
// bitmap sizes(BM_HxV):    BM_512x256, BM_512x512, BM_1024x256, BM_1024x512
slBitMapNbg1(COL_TYPE_32768, BM_512x256, (void *)VDP2_VRAM_A0);
// might want to clear it or load an image later
// memset((void *)VDP2_VRAM_A0, CD_Black, 256*512*2);

// monitor position in scroll coordinate space
// sets the position of monitors topleft corner(fixed format)
slScrPosNbg1(toFIXED(0.0), toFIXED(0.0));

// reduction setting: only NGB0 and NBG1 are able to RBG, too)
// modes:   ZOOM_1, ZOOM_HALF, ZOOM_QUATER      each untill x256
// zoom
// fixed point reziprocal of scale ratio in x and y direction
slZoomNbg1(toFIXED(1.0), toFIXED(1.0));

// registeres scrolls
// call only after all scroll function settings
// returns 0 or -1(ERROR)
slScrAutoDisp(NBG0ON | NBG1ON);


Data transfer:

You see the bitmap scroll is an image of fixed size. So transfering an image of smaller size to it needs special care (img2VRAM).
  1. optional: load from CD
  2. optional: decompress
  3. transfer
Example code based on the demo:

void loadBG()
// load from CD into an allocated buffer, decompress and display the
// background image
Sint32 load = GFS_Load(GFS_NameToId("LAVA.BIN"), 0, (Uint32 *)buffer, 120260);
if(load <= 0)
display_Error("ERROR loading file LAVA.BIN!", 1);
if(DeHuff(buffer, (void *)adr) != 0)
display_Error("ERROR decompressing file LAVA.BIN!", 1);
img2VRAM((Uint16 *)VDP2_VRAM_A0, 512, (Uint16 *)(0x200000), 240, 320);

// line-by-line transfer to vram
void img2VRAM(Uint16 *vram, Uint16 vram_width, Uint16 *img, Uint16 img_height, Uint16 img_width)
int i;
Uint32 oVRAM = 0;
Uint32 oIMG = 0;
for(i = 0; i < img_height; i++) {
memcpy((void *)(vram + oVRAM), (void *)(img + oIMG), img_width*sizeof(Uint16));
oVRAM += vram_width;
oIMG += img_width;

Expert note:
Transfering bitmap data to VDP2 VRAM with img2VRAM is inefficient.
For normal Saturn programs this is OK, since img2VRAM is only used at game start.
However for apps that transfer images to VDP2 VRAM very heavily, like emulators, software renderers, video decompression, it can slow performance very much.
Fortunately there is the possibility to transfer the whole image to VRAM with DMA by using the linescroll feature of the VDP2. But there is only one very specific example by CyberWarriorX (see SaturnOrbit) which is in fact just the example code found in the linescroll technical bulletin board. The computation of the linescroll table and vertical cell scroll table is the difficulty that has not been solved yet.

How to use sprites

You will need a sprite table(raw bitmap data and TEXTURE, PICTURE and SPR_ATTR tables) included in your sourcecode:
How to create a sprite/texture table


Specify the TEXTURE table as second parameter in slInitSystem():
slInitSystem(TV_320x240, tex_SpriteTable, 1);

After that copy the sprite/texture bitmap data to VDP1 VRAM by calling set_sprite with parameters PICTURE table, number of picture table entries and TEXTURE table.
set_sprite(pic_SpriteTable, 310, tex_SpriteTable);

For each sprite/texture it determines correct copy size by the width, height (from TEXTURE) and color mode (from PICTURE) and copies the bitmap data (from PICTURE) to the desired location in VDP1 VRAM (from TEXTURE).

Expert note:
Usually the generated sprite/texture bitmap data is located consecutively in VDP1 VRAM, enabling to load in from CD and copy it to VRAM in a batch. See:
How to create a sprite/texture table to be loaded from CD (+ compression)
For such a binary sprite table you would do:
// load from CD, decompress and set transparent color of the
// work RAM sprite animation
Sint32 load = GFS_Load(GFS_NameToId("SPRTBL.BIN"), 0, (Uint32 *)buffer, 120260);
if(load <= 0)
display_Error("ERROR loading file SPRTBL.BIN!", 1);
// I know it's word unit
void *out = (void *)0x200000;
if(CMP_DecRunlenWord(buffer, &out, 0x100000) != CMP_DEC_OK)
display_Error("ERROR decompressing file SPRTBL.BIN!", 1);
set_colorkey((Uint16 *)adr, 244768/2, CD_Blue, 0);
// this assumes consecutive character pattern order in VRAM
// like 3DEditor usually generates it by default
slDMACopy((void *)0x200000, (void *)(SpriteVRAM + CGADDRESS), (Uint32)244768);

Drawing sprites:

Sprites must be redrawn every frame. Advance to next frame by calling slSynch();
Drawing order is determined by the z depth value which effects sprites and polygons the same way.

Set the z depth value big enough or it won't be visible on screen (same with too big z depth values). A z depth value of 169.0 is good.

// display attributes of all used sprites in VDP1 VRAM
// have this global in your program
// see How to create a sprite/texture table
SPR_ATTR attr_SpriteTable[] = {


void drawSprite()
// display position: screen middle, scale is 1.0, depth is 169 such that it is located in the drawable view volume.
FIXED pos[XYZS] = {toFIXED(0.0), toFIXED(0.0), toFIXED(169), toFIXED(1.0)};
ANGLE ang = DEGtoANG(0.0);
Uint32 spriteID = 0;

// just a list of display function, use onle one ;)

// display using screen coordinates
    // for negative scaling the display scale is computed from z pos * (-scale)
slDispSprite(pos, attr_SpriteTable + spriteID, ang);

    // 4 points in screen coordinates
slDispSprite4P(FIXED pos[4][XY], FIXED zpos, SPR_ATTR *atrb);

    // horizontal and vertical scaling, allowing negative values
slDispSpriteHV(FIXED pos[XYZSS], SPR_ATTR *atrb, ANGLE Zrot);

    // similar to above
slDispSpriteSZ(FIXED pos[XYZSS], SPR_ATTR *atrb, ANGLE Zrot);

// display with the current matrix perspective transformations
    // just like when drawing polygons
slPutSprite(pos, attr_SpriteTable + spriteID, ang);


How to use animated sprites (+ short and long)

This extends How to use sprites.
You might also want to read How to convert sprites, textures and animations and How to create a sprite/texture table.

Sprite bitmap data is located in VDP1 VRAM and referenced by a sprite id number which is used to access the TEXTURE table.
Now there are two attempts possible to display animated sprites:

Animations (short) in VDP1 VRAM:

How it works on Saturn:
Change the sprite/texture id for a sprite to change it's animation frame displayed.

Different sizes of the animation frames are allowed.

Animations (long) in work RAM:

How it works on Saturn:
Overwrite the sprite/texture bitmap data in VDP1 VRAM with data stored in work RAM.

All frames of the animation are assumed to have equal size.

This is special:
For each animation of this kind you will need a dummy frame entry in the texture table where the bitmap data is transfered to.
You have 10 work RAM animations in total. They got 5 different pixel sizes. For 2 sizes it can happen that multiple (let's say a maximum is 3 and 2) animations are displayed at once, which are supposed to be out of synch. Some other sizes are displayed at once, too, but they are in synch, e.g. always show equal frames.
You will need to have 5 dummy frames, one for each size. Plus additional (2 and 1) dummy frames for each out of synch animation duplicate that can be displayed at once.


In addition to those in How to use sprites,
for animations in work RAM only:
  1. optional: load the animation from CD.
  2. optional: must be decompressed.
  3. optional: set the transparent color. Must be done on Saturn for DHUFF compression, but for RLE compression and no compression it is possible to do that on PC with a hex editor.
Example from demo:

Uint8 *adr = (Uint8 *)0x200000;
Sint32 load;

// load from CD, decompress and set transparent color of the
// work RAM sprite animation
load = GFS_Load(GFS_NameToId("NEWBIE.BIN"), 0, (Uint32 *)buffer, 120260);
if(load <= 0)
display_Error("ERROR loading file NEWBIE.BIN!", 1);
if(DeHuff(buffer, (void *)adr) != 0)
display_Error("ERROR decompressing file NEWBIE.BIN!", 1);
set_colorkey((Uint16 *)adr, 570960/2, CD_Blue, 0);


Example code based on the demo,
capable to draw all 3 types: normal sprites, VRAM animations and work RAM animations:

typedef enum {
} SpriteType;

typedef struct SPRITE {
SpriteType type;
char *name;
ANGLE ang;
Uint32 spriteID;
// for animations
Uint32 frame, nFrames;
Uint8 *source, *target;
Uint32 size;
struct {
Uint8 count, max;
} frameskip;
} Sprite;

Sprite sprites[5] = {
{SPR_TYPE_SINGLE, "cool", {toFIXED(0.0), toFIXED(-60.0), toFIXED(169), toFIXED(1.0)}, DEGtoANG(0.0), 0, 0, 0, NULL, NULL, 0, {0, 0}},
{SPR_TYPE_ANI_WRAM, "newbie 1 work RAM", {toFIXED(-80.0), toFIXED(60.0), toFIXED(169), toFIXED(1.0)}, DEGtoANG(0.0), 1, 0, 183, (Uint8 *)0x200000, (Uint8 *)(SpriteVRAM + CGADDRESS+864), 104*15*sizeof(Uint16), {0, 10}},
{SPR_TYPE_ANI_WRAM, "newbie 2 work RAM", {toFIXED(80.0), toFIXED(60.0), toFIXED(169), toFIXED(1.0)}, DEGtoANG(0.0), 2, 6, 183, (Uint8 *)0x200000, (Uint8 *)(SpriteVRAM + CGADDRESS+3984), 104*15*sizeof(Uint16), {0, 10}},
{SPR_TYPE_ANI_VRAM, "driving 1 video RAM", {toFIXED(-80.0), toFIXED(-60.0), toFIXED(169), toFIXED(1.0)}, DEGtoANG(0.0), 3, 0, 17, NULL, NULL, 0, {0, 20}},
{SPR_TYPE_ANI_VRAM, "driving 2 video RAM", {toFIXED(80.0), toFIXED(-60.0), toFIXED(169), toFIXED(1.0)}, DEGtoANG(0.0), 3, 3, 17, NULL, NULL, 0, {0, 20}},

void drawSprite(Sprite *sprite)
// animate
if(sprite->type != SPR_TYPE_SINGLE) {
if(++sprite->frameskip.count >= sprite->frameskip.max) {
sprite->frameskip.count = 0;
// a new frame
if(++sprite->frame >= sprite->nFrames)
sprite->frame = 0;
if(sprite->type == SPR_TYPE_ANI_WRAM)
slDMACopy((void *)(sprite->source + sprite->frame*sprite->size), (void *)sprite->target, sprite->size);
if(sprite->type == SPR_TYPE_ANI_VRAM)
slDispSprite(sprite->pos, attr_SpriteTable + sprite->spriteID + sprite->frame, sprite->ang);
slDispSprite(sprite->pos, attr_SpriteTable + sprite->spriteID, sprite->ang);

void drawSprites()
int i;

for(i = 0;i < 5; i++)
drawSprite(sprites + i);


How to use (textured) polygons

Data needed:

Include the polygon data in your source code, see How to convert 3D data.
#include "polygons/SaturnRings3_textured.mdl"

It contains this data:
POINT    point_0[] = {
POStoFIXED( 20.5185,-13.7100,  0.0000),

POLYGON    polygon_0[] = {
NORMAL(  0.0000,  0.0000,  1.0000), VERTICES( 1, 0, 3, 2),

ATTR    attribute_0[] = {
ATTRIBUTE(Dual_Plane, SORT_CEN, 21, C_RGB(20,20,20), No_Gouraud, CL32KRGB|MESHoff, sprNoflip, UseLight),

XPDATA    xpdata_0[] = {
point_0, sizeof(point_0)/sizeof(POINT),
polygon_0, sizeof(polygon_0)/sizeof(POLYGON),


Using sprites/textures:
(you need a texture table, see How to create a sprite/texture table)

// init SGL with specifying the TEXTURE table
slInitSystem(TV_320x240, tex_SpriteTable, 1);

// and transfer sprite/texture bitmap data to VDP1 VRAM
// specify TEXTURE and PICTURE table and length of PICTURE table
set_sprite(pic_SpriteTable, 310, tex_SpriteTable);

Not using any sprites/textures:

// you need to specify NULL as TEXTURE table.
slInitSystem(TV_320x240, NULL, 1);


Never ever forget the braces () after slUnitMatrix(); slPushMatrix();, slPushUnitMatrix(); or slPopMatrix();.
This will corrupt polygon display and the bug is very hard to find!

No hierarchy:

// init current matrix
// object transformation
slTranslate(pos[X], pos[Y], pos[Z]);
slScale(sca[X], sca[Y], sca[Z]);

// display Saturn rings
slPutPolygon((PDATA *)&xpdata_SaturnRings);

// change frame
// essencial for all in SGL

With hierarchy (matrix stack):

// init current matrix
// object transformation
slTranslate(pos[X], pos[Y], pos[Z]);
slScale(sca[X], sca[Y], sca[Z]);

// display Saturn rings
slPutPolygon((PDATA *)&xpdata_SaturnRings);

// display other stuff
// Example: a big rock in the Saturn Ring


// change frame
// essencial for all in SGL

Let the slave CPU do most drawing work:

slPutPolygonS((PDATA *)&xpdata_SaturnRings);

// change frame
// essencial for all in SGL

How to use realtime gouraud shading

This is in addition to (and requires the steps in) How to use (textured) polygons.

Gouraud shading does interpolate color values of the (Saturn: 4) vertices all over the whole polygon face. On Saturn these color values are stored in a gouraud color table in VDP1 VRAM. This table can be precomputed or edited by hand in 3DEditor (C:/SaturnOrbit/TOOLS/SSSDK/). And this table can be computed in realtime on Saturn, by evaluating the light intensity at the vertices which is caused by a light source direction vector.

Okay, you can compute a light direction vector for each realtime gouraud shaded polygon object you are drawing.
Realtime gouraud computation will increase the CPU load on Saturn.

Data needed:

3D model attributes:
specify CL_Gouraud, UseGouraud and the gouraud table position GRreal(0) like here:
(done automatically by 3DEditor in exported .MDL files)
ATTR    attribute_0[] = {
ATTRIBUTE(Single_Plane, SORT_CEN, 54, C_RGB(20,20,20), GRreal(0), CL32KRGB|MESHoff|CL_Gouraud,sprNoflip, UseGouraud),

Work variables:
// don't take different gouraud table addresses
// in the .mdl files and here
#define    GRaddr    0x1c38 //0xe000

// SGL300PV.TXT: suppose it's maximum sized gouraud table in use
// but in the end, there seems to be only one gouraud table for all objects
#define GOUR_REAL_MAX   256

// work area for realtime gouraud table computation
Uint8            vwork[GOUR_REAL_MAX];


You don't need to transfer the gouraud table at startup, since it's recomputed every frame.

// the real time gouraud function is
// only documented in japanese language(only little in english)...
// instead of copying the global gouraud table to VRAM
// only once at startup
// slPutPolygonX() computes a new one
// for every XPDATA object every frame
// and copies the table to VRAM with slGouraudTblCopy()
// For this, a local temporary gouraud table is needed
// which is big enough to hold the biggest gouraud table in use
slInitGouraud(gourRealMax, GOUR_REAL_MAX, GRaddr, vwork);


// light source variables
FIXED light[XYZ];
ANGLE light_ang[XYZ] = { DEGtoANG(0), DEGtoANG(0), DEGtoANG(0)};
ANGLE light_angAdd[XYZ] = { DEGtoANG(1.0), DEGtoANG(0.5), DEGtoANG(0)};

void draw()
// object transformations
// ...
slPutPolygonX((XPDATA *)&xpdata_SaturnPlanet, light);

// compute moving light direction vector
void computeLight()
FIXED light_init[XYZ] = { toFIXED(0.57735026), toFIXED(0.57735026), toFIXED(0.57735026) };
// never forget the braces () !!!!
// perform rotation
// transform light vector
slCalcVector(light_init, light);

// advance light rotation
light_ang[X] += light_angAdd[X];
light_ang[Y] += light_angAdd[Y];
light_ang[Z] += light_angAdd[Z];

How to create an ISO

SaturnOrbit does create an ISO automatically after compiling.
You only need a folder named "cd" which is the root of the CD to create and which contains all files but the binary executable.

The Saturn game CD should contain files ABS.TXT, BIB.TXT and CPY.TXT. Also an IP.BIN is needed for ISO creation. SaturnOrbit uses a default IP.BIN, but you can create on your own.

For ISO creation the tool mkisofs.exe is used (the former buildcd.exe + stripiso.exe approach dosn't work anymore on Windows XP).

ISO creation commandline is:
mkisofs.exe -quiet -sysid "SEGA SATURN" -volid "SaturnApp" -volset "SaturnApp" -publisher "SEGA ENTERPRISES, LTD." -preparer "SEGA ENTERPRISES, LTD." -appid "SaturnApp" - abstract "ABS.TXT" -copyright "CPY.TXT" -biblio "BIB.TXT" -generic-boot IP.BIN -full-iso9660-filenames -o sl.iso cd

How to burn a CD with audio tracks

Originally a SEGA Saturn CD always consists of a data track (mode 1, 2048 sector size) and at least one audio track. If the game doesn't use CDDA, then this track just says "This disc is a SEGA Saturn game CD....." to avoid people from playing the data track in their stereo.

So you need an ISO file of the data track and a number of audio tracks in WAV or MP3 format (or BINARY = headerless WAV). Then a CUE sheet has to be written which determines the disc and track layout.

Making a CUE sheet:

Use the tool SegaCueMaker.exe (C:/SaturnOrbit/TOOLS/) to generate a CUE sheet. Run it in the same directory where the ISO file and the WAV files are.
Yes, SegaCueMaker won't recognize MP3 files, although they are supported by most burning proggies which burn CUE sheet CDs.
Workaround: Just like in the Saturn demo, rename all .mp3 files to .wav, run SegaCueMaker, rename them to .mp3 again and open the generated CUE sheet in a text editor. Replace all occurences of WAVE with MP3 and file extensions .wav to .mp3, too.

Example: CUE sheet of the demo

FILE "sl_coff.iso" BINARY
  TRACK 01 MODE1/2048
      INDEX 01 00:00:00
      POSTGAP 00:02:00
FILE "denied.mp3" MP3
    PREGAP 00:02:00
    INDEX 01 00:00:00
FILE "freeze.mp3" MP3
    INDEX 01 00:00:00
FILE "outback.mp3" MP3
    INDEX 01 00:00:00
FILE "scream.mp3" MP3
    INDEX 01 00:00:00

Burning a CUE sheet:

Those CD burning software is known to support CUE sheets:

Nero Burning ROM
Alcohol 120%

Advanced note:
If you need to burn a lot of CD-R's for testing on Saturn, try burning on quality CD-RW's and apply the CD-RW mod to your saturn. It works! I tried it years before with older CD-RW's and it didn't work, so use good ones.

How to perform the swap trick (once and twice)

Saturn CD boot sequence:
(with laser pickup position)
  1. reads table of content (data and audio track layout) (pickup inside)
  2. checks outer security ring (pickup outside)
  3. loads and executes IP.BIN and binary executable (pickup inside)
Perform "swap twice" for all commercial games and homebrew games that use CD audio tracks. For homebrew games which not use CD audio it's sufficient and faster to "swap once"


The SEGA Saturn system regognizes when the CD door is opened and exits the game. To avoid this:
You have to remove the top half of the Saturn case to access the CD door switch.

Then tape the door switch one the left back side of the CD drive. Test if the switch is closed by inserting an original CD and turning on the Saturn system.

If you want to, you can close the Saturn case again.

swap twice (if CD audio is used)

With the taped CD door switch and Saturn powered off:
  1. insert CD-R
  2. power on Saturn
  3. wait for the CD pickup to move outside and remove the CD-R
  4. within 3-5 seconds insert an original game CD
  5. wait for the pickup to return from the outer security ring and remove original game CD
  6. faaastly insert the CD-R

swap once (if NO CD audio is used)

With the taped CD door switch and Saturn powered off:
  1. insert original game CD
  2. power on Saturn
  3. wait for the pickup to return from the outer security ring and remove original game CD
  4. faaastly insert the CD-R

Note: If the CD drive got problems to focus the laser on the swapped CD, you can stop the CD and let it spin again. It works most times.

How to run a binary in an emulator

Satourne, Saturnin:
Start the emulation by pressing RUN/Start,
wait untill the first polygons of the boot sequence appear,
then pause the emulation and load up a binary to address 0x6004000 and proceed emulation.

GiriGiri V6a:
Don't wait untill first polygons appear, but untill message "??? passed" (can't exactly remember) appears.

Hacked GiriGiri (commercial):
There is also a way to start homebrew CD images and even binaries with this emu. Not covered here.

Advanced note:
Saturnin may perform binary loading from the command line in the future.

How to run an ISO in an emulator without burning a CD

Using daemon tools to emulate a CD drive should work with all Saturn emulators.

In daemon tools mounting a CUE sheet CD image with MP3 audio tracks won't work, since deamon tools hasn't got an MP3 coded.
Convert the MP3 to WAV with the tool of your choice and recreate or edit the CUE sheet such that all occurences of MP3 are replaced by WAVE and .mp3 replaced with .wav.
  1. download daemon tools
  2. install
  3. mount your cd image (whatever format it is, but CUE sheets should avoid MP3 and use WAV instead to work)
  4. start emu and make it use the new virtual CD drive you created

How to upload a binary executable to the Saturn

There are Saturn cartridges with a PC connector like GameShark, EMS 4in1 PLUS, Pro Action Replay, ... .
To connect these to the PC you need an appropriate parallel port cable, and a cart to plug into your PC.

The original cart is called Comms Link cart, sometimes also Commlink cart or PC link. It is the fastest option, but the cart needs an ISA slot in your PC motherboard. None of todays PCs got an ISA slot anymore, you would need an older PC. The fastest ISA slot PCs got a INTEL Pentium 3, AMD Athlon slot A or AMD K6-2 socket 7.

For PCs without ISA slot, you'll have to build you a FreeWing IF or yano/exstand cart.
But these are slower as the original CommsLink cart.
The official Action Replay tools for PC don't support this, but there is a solution(see SaturnOrbit readme).

On Windows XP the Saturn interace doesn't initially work, untill directio is installed (see SaturnOrbit readme).

To upload and execute a binary on Saturn, use one of the tools found in C:/SaturnOrbit/TOOLS/PAR/ ????

!!!! this is all unfinished!!!
saturn sh2 debugger, saturn 68k debugger?

How to test games which require CD access efficiently on real Saturn hardware

Instead of burning your homebrew Saturn game CD again and again in order to test it on real hardware, you could burn it once and upload the updated binary executable to Saturn each time you want to test it.

  1. So burn your CD image,
  2. insert the CD-R/CD-RW into your Saturn CD drive
  3. insert a call of CdUnlock() to the start of your sourcecode before doing any CD (file system) stuff,
  4. upload the binary to the Saturn, see How to upload a binary executable to the Saturn and
  5. if you haven't got a modchip, perform the swap trick when the Saturn CD drive tries to read the outer security ring, see How to perform the swap trick (once and twice)
  6. test your app on Saturn, apply sourcode changes, recompile and proceed at step 4

Unlocking the CD:

As you have booted the Saturn from cartridge, the CD block has not authenticated/unlocked the data track.
But you can't access the CD (except CDDA, maybe) as long is it's locked.

You can request authentification manually at startup of your game, before accessing or initializing any CD file system stuff, by calling CdUnlock().

Pitfall: just like when starting the Saturn with a CD-R you will have to perform the swap trick here, unless your Saturn got a modchip.

/* for initializing the CD-ROM when testing with PAR */
// taken from somewhere ???
#define SYS_CDINIT1(i) \

#define SYS_CDINIT2() \

int CdUnlock (void)
Sint32 ret;
CdcStat stat;
volatile int delay;



do {
for(delay = 100000; delay; delay--);

ret = CDC_GetCurStat(&stat);
} while ((ret != 0) || (CDC_STAT_STATUS(&stat) == 0xff));

return (int) CDC_STAT_STATUS(&stat);
